While researching a solution i came upon many forum threads and blog posts expounding the virtues of installing a hard start capacitor kit. A hard start kit shortens the startup period of the compressor and reduces the amount of electricity it takes to start your ac.
In fact with a hard start kit the electrical efficiency of the startup process is as high as 98 compared to an efficiency of only 50 without one.
You can find out more Diagram below
Ac hard start kit wiring diagram. During installation everything was verified as correctly installed per the wiring diagrams and also. Please visit my amazon store front for awesome hvac tools at a affordable price delivered right to your home every tool in my hvac tool of th. We use compressor saver.
Figure 2 2 wire connection two wire hard start kits are connected in parallel with the run capacitor for permanent split capacitor psc type compressors. Thats when a hard start kit saves the day. This procedure applies to almost every air conditioning and heat pump system on the market.
The 521 compressor saver lowers electricity billsprolongs the life of an air conditioner reduces ac repairs and reduces the need for air conditioning service. Please right click on the image and save the pic. We also have some more illustrations connected to air conditioner capacitor wiring diagram please see the image gallery below click.
The benefits of a hard start. Researching it a little more i discovered my rvs roof top air conditioner didnt have the hard start kit but one could be easily installed. Ultra durable 5 2 1 csr u3 compressor saver hard start capacitor by blue stars compatible for 4 to 5 ton units.
How to wire a dual capacitor hard start kit on compressor. This is the procedure and information for adding or replacing a hard start on an existing systemthe specific unit in this example is a carrier brand ground level split straight cool system. A 3 wire hard start but installation is made simpler and cost is usually lower.
The start capacitor gives the motors windings an electric boost during the start up phase. Compressor starts and stops thousands of times per year. And connected to the.

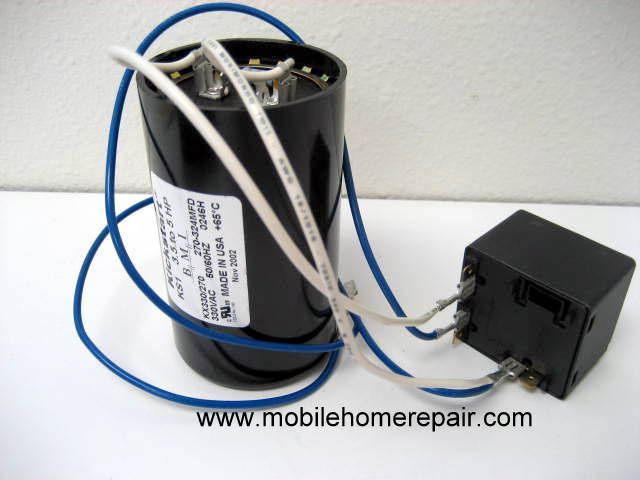

A start capacitor kit contains a start capacitor relay and wires. Red wire on common of. You can save this pic file to your own personal laptop.
Large electric motors with a high starting torque like an air conditioners compressor motor often use a start capacitor kit. Thats a big win for under 100 delivered for the hard start kit a genteq dual run capacitor and an ac clamp meter. Figure two 2 shows the wiring diagram for a 2 wire hard start.
Hard starthard start kitstart capacitorcompressor for air conditioningstart assistthe 5 2 1 compressor saver helps protect your ac compressor and home air conditioner by reducing the amount of time it takes to start by 30 50. This is the air conditioner hard start kit throughout capacitor wiring diagram of a picture i get off the air conditioner capacitor wiring diagram package.
